UMC-028 BOL D'OR

Donor Bike
BMW R80/7

SPECIFICATIONS
Length: 1465 mm
Width: 746 mm
Height: 1080 mm
Seat: 810 mm
Weight: 215 Kg
Fuel: 24 litres

Frame, Suspension, Wheels.

• Original frame de-tabbed and powder coated satin black
• Subframe shortened and welded to main frame - brackets added for seat unit
• Original front 19” wheel rim replaced with 19” X 3.25 alloy rim painted satin blue. Front hub powder coated satin black.
• Original rear hub replaced with R100 paralever powder coated satin black. New alloy 17” rim painted satin blue
• Front and rear original spokes and nipples replaced with heavy duty stainless steel.
• Tyres - Bridgestone Battlax
• New rear Hagon shock

Electrics, Lighting.

• New UMC wiring loom
• BMW headlight modified by UMC
• Motogadget rev counter and speedo fitting onto custom bracket
• Rear bates stop light mounted on UMC fabricated bracket
• Under gearbox Odyssey battery mounted in house fabricated box
• Bar end indicators

Controls.

• Kawasaki brake and clutch controls
• Clip on handle bars
• Kawasaki switch gear
• Goodrich brake hose

Engine, Exhaust.

• Engine overhauled and bead blasted
• New big end shells
• New timing chains and tensioners
• New piston rings
• New valve get guides
• New valves
• Stainless pushrods tubes
• New clutch friction plates
• All new gaskets and
• Gearbox overhauled
• Carbs overhauled and hand pull choke cables used
• New up and over header pipes fabricated into in frame exhausts exiting through seat hump. All finished in soft chromed

Bodywork.

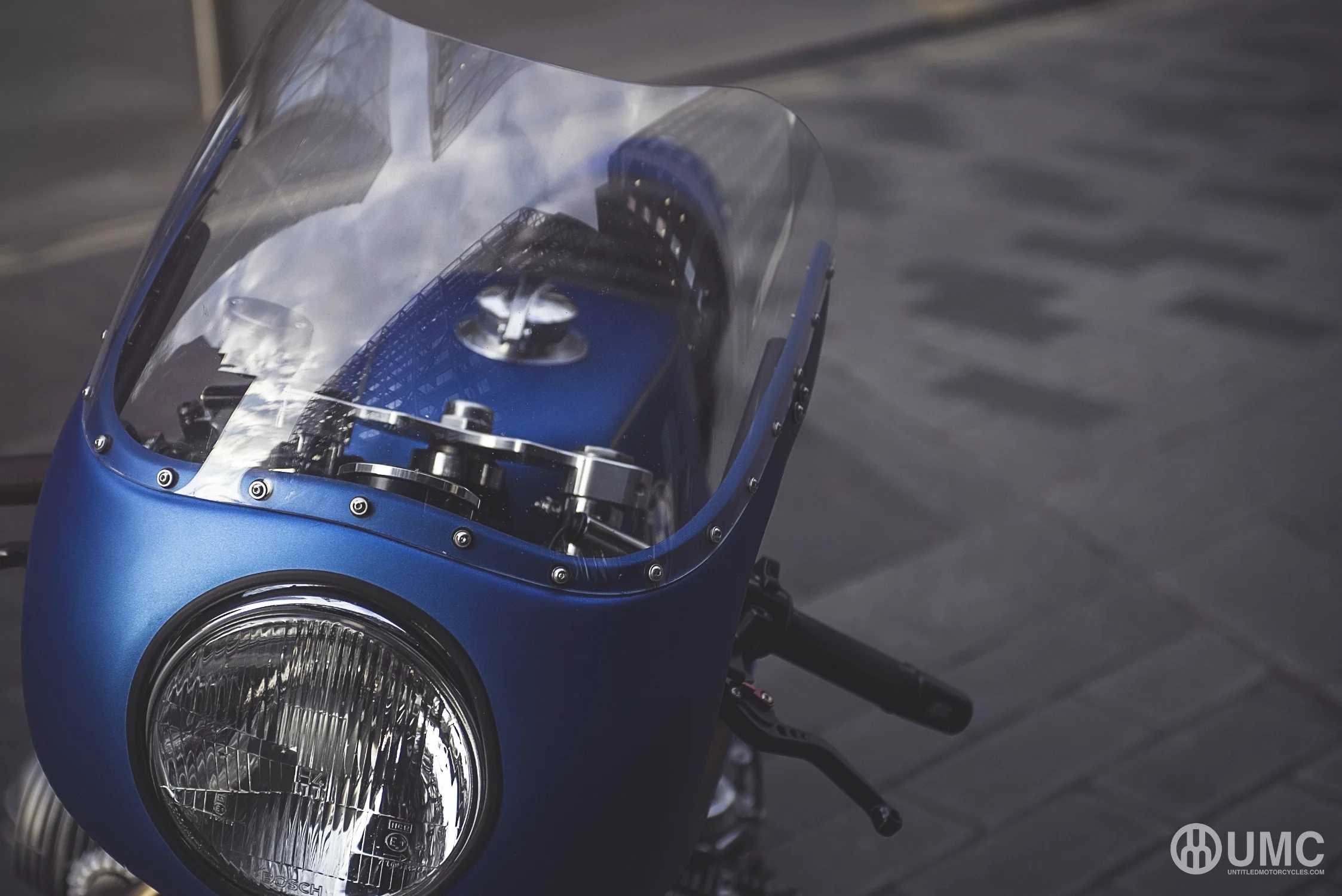

• Ducati fairing and seat unit adapted to fit using UMC fabricated brackets

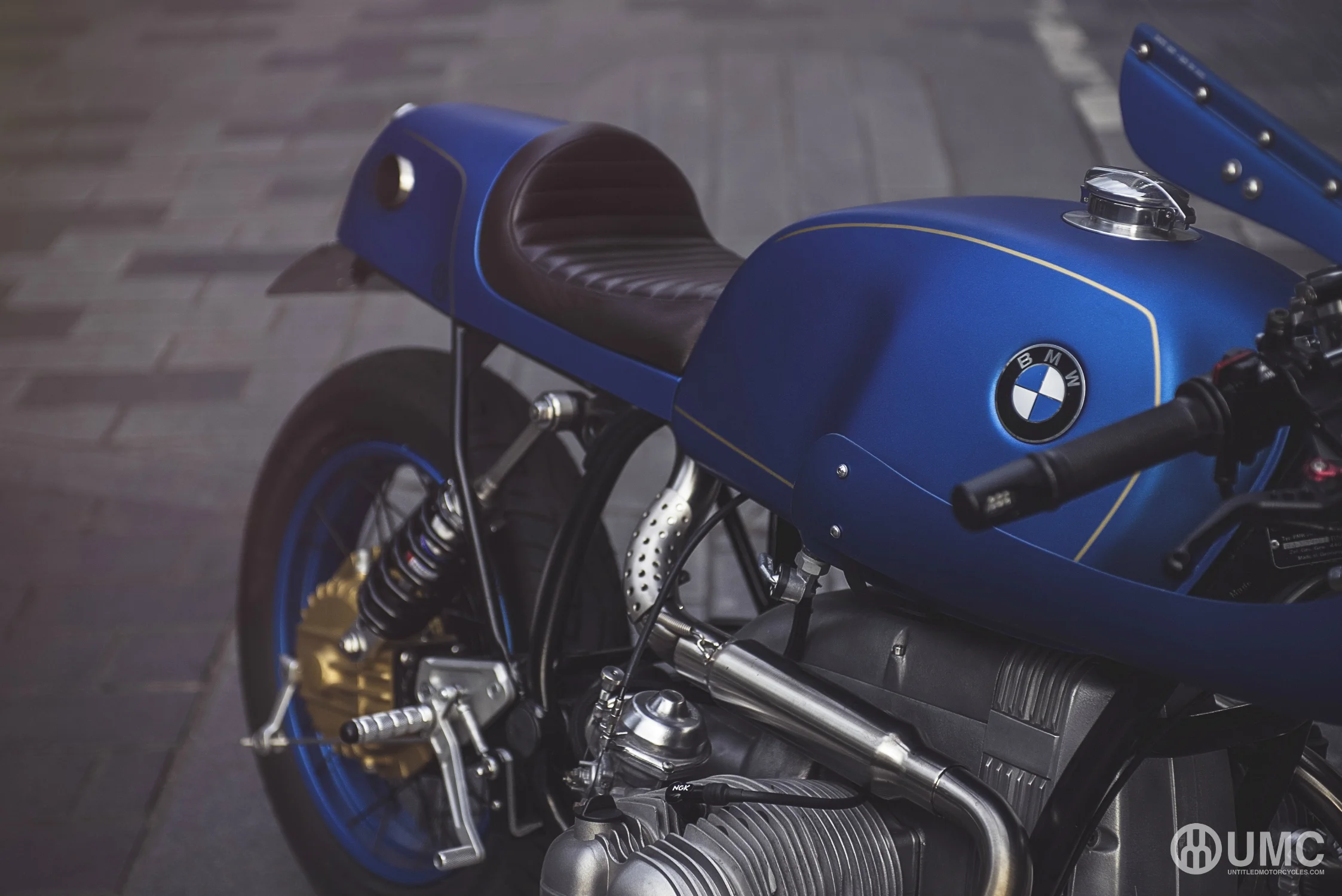

• Original tank, seat unit, wheels, front guard and hub painted
• New leather seat
• New rear sets adapted by UMC
• Starter motor cover changed to aftermarket version

Untitled Motorcycles
  • Hello/
  • Bikes/
  • Shop/
  • Commission a build/
  • Media/

< PREV / NEXT >

UMC-028 BOL D'OR
Designed for the track, ridden on the road

1 2 3 4 5 6
Previous Next



UMC-028 BOL D'OR
1984 BMW R80/7

Talk to us about commissioning a similar build

SPECIFICATIONS
Length: 85" / 216cm
Width: 36" / 90cm
Height: 44" / 112cm
Seat: 31.5" / 80cm
Weight: 401lbs / 182kg dry (35lbs/16kg lighter)
Fuel: 6.3 gallons / 24 litres

Frame & Suspension
• Original frame de-tabbed and powder coated satin black
• Subframe shortened and welded to main frame - brackets added for seat unit
• Original front 19” wheel rim replaced with 19” X 3.25 alloy rim painted satin blue. Front hub powder coated satin black.
• Original rear hub replaced with R100 paralever powder coated satin black. New alloy 17” rim painted satin blue
• Front and rear original spokes and nipples replaced with heavy duty stainless steel.
• Tyres - Bridgestone Battlax
• New rear Hagon shock

Electrics
• New UMC wiring loom
• BMW headlight modified by UMC
• Motogadget rev counter and speedo fitting onto custom bracket
• Rear bates stop light mounted on UMC fabricated bracket
• Under gearbox Odyssey battery mounted in house fabricated box
• Bar end indicators

Controls.
• Kawasaki brake and clutch controls
• Clip on handle bars
• Kawasaki switch gear
• Goodrich brake hose

Drivetrain
• Engine overhauled and bead blasted
• New big end shells
• New timing chains and tensioners
• New piston rings
• New valve get guides
• New valves
• Stainless pushrods tubes
• New clutch friction plates
• All new gaskets and
• Gearbox overhauled
• Carbs overhauled and hand pull choke cables used
• New up and over header pipes fabricated into in frame exhausts exiting through seat hump. All finished in soft chromed

Bodywork
• Ducati fairing and seat unit adapted to fit using UMC fabricated brackets
• Original tank, seat unit, wheels, front guard and hub painted
• New leather seat
• New rear sets adapted by UMC
• Starter motor cover changed to aftermarket version
