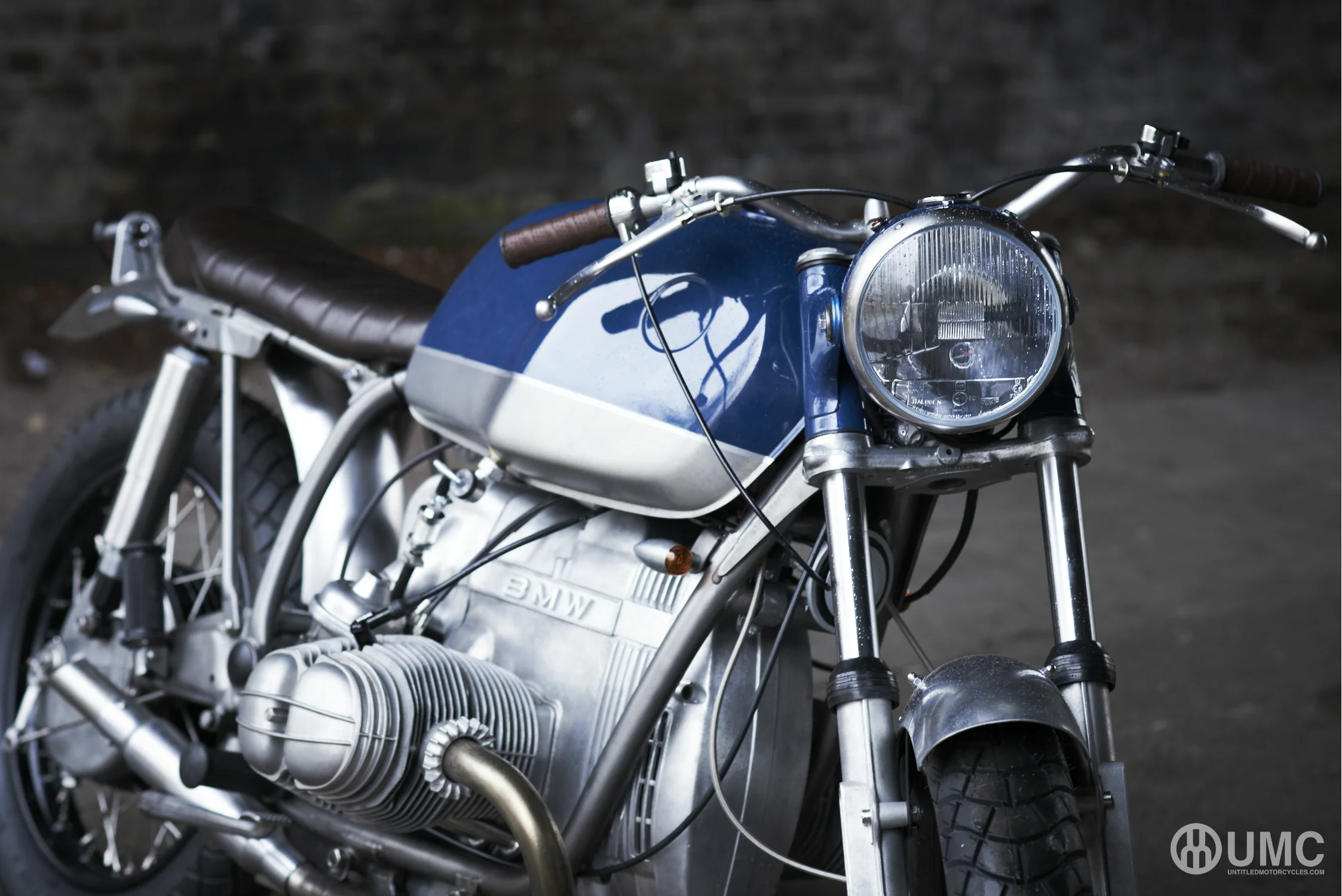

UMC-021 RAW
Donor bike
BMW R100
SPECIFICATIONS
Length: 1465 mm
Width: 746 mm
Height: 1080 mm
Seat: 810 mm
Weight: 215 Kg
Fuel: 24 litres
Frame, Suspension, Wheels.
• Original frame de-tabbed. Sand blasted and hand sanded back to shiny metal. Powder coated satin clear
• Subframe shortened and rear hoop angled up. Sand blasted and hand sanded back to shiny metal. Powder coated satin clear
• Original front 19” wheel rim replaced with 18” X 4.00 alloy rim
• Original rear rim replaced with alloy rim.
• Front and rear original spokes and nipples replaced with heavy duty stainless steel.
• Front ECB disc customised to allow for wider rim.
• Tyres M45
• New rear Hagon shrouded shocks customised
Electrics, Lighting.
• New UMC wiring loom
• Front headlight modified by UMC
• Original BMW speedo sunk into modified UMC headlight
• Rear light, Vincent stop light mounted on UMC fabricated bracket
• Under gearbox Odyssey battery mounted in house fabricated box.
• Original ignition switch relocated to left side of subframe.
• Starter button replaced by after market flat button style mounted below ignition switch on subframe.
Controls.
• Classic British scrambler handle bars finished by UMC
• Classic British handle bar controls with wiring through bars and top yoke into headlight shell.
• Classic British brake and clutch levers and mounts.
• Original master cylinder and reservoir replaced by BMW under tank master cylinder.
• Cable operated brake lever
• Goodrich brake hose
Engine, Exhaust.
• Engine overhauled and bead blasted
• New big end shells
• New timing chains and tensioners
• New piston rings
• New valve get guided
• New valves
• Stainless pushrods tubes
• New clutch friction plates
• All new gaskets and
• Gearbox overhauled
• Carbs overhauled
• New header fabricated pipes, exhausts and end pipes soft chromed
Bodywork.

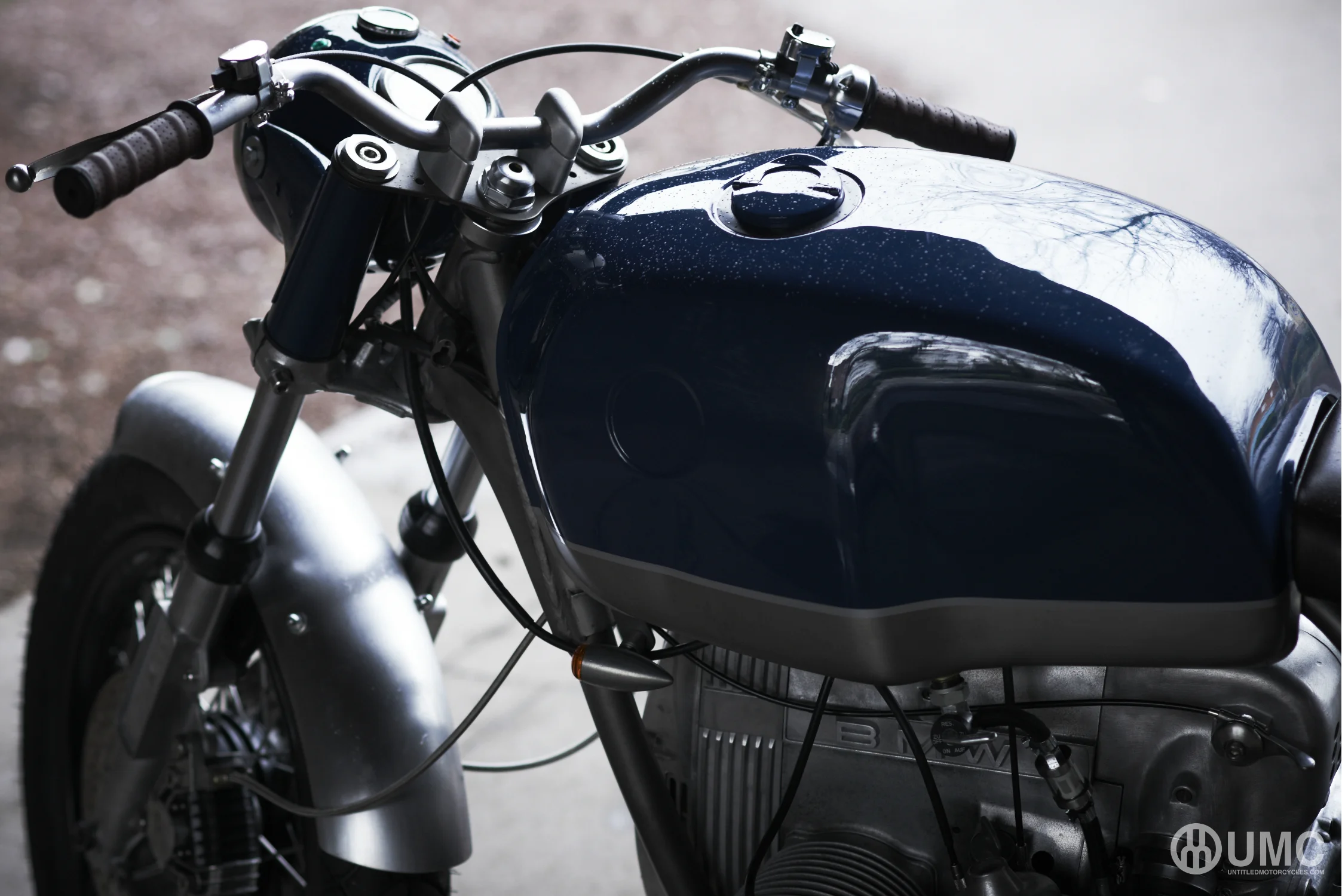

• Original tank hand sanded back to raw steel and clear coated. Blue painted to seat line
• New leather seat
• New stainless front and rear mudguards hand finished
• Front mudguard mount customised to fit wider rim and tyre
