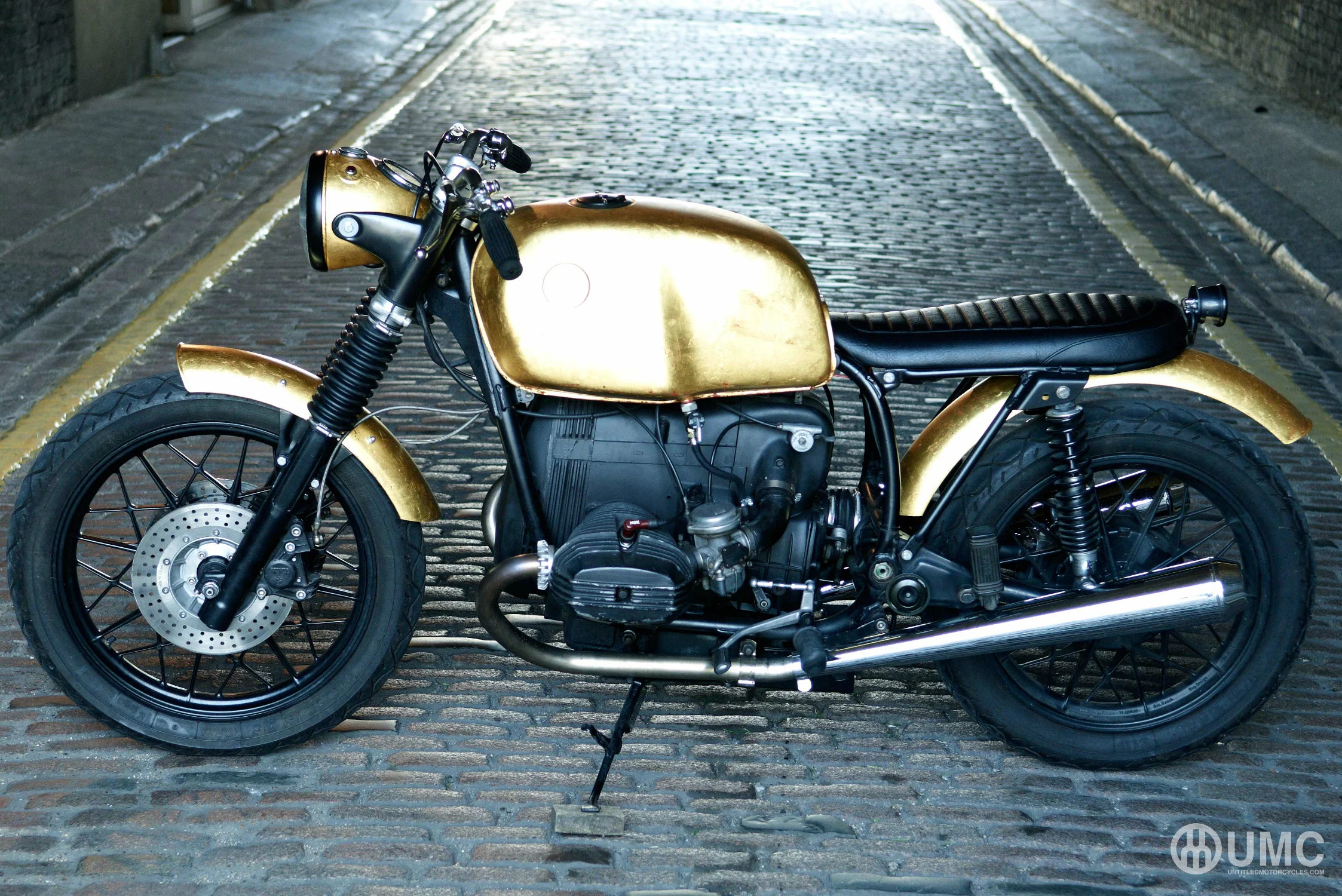

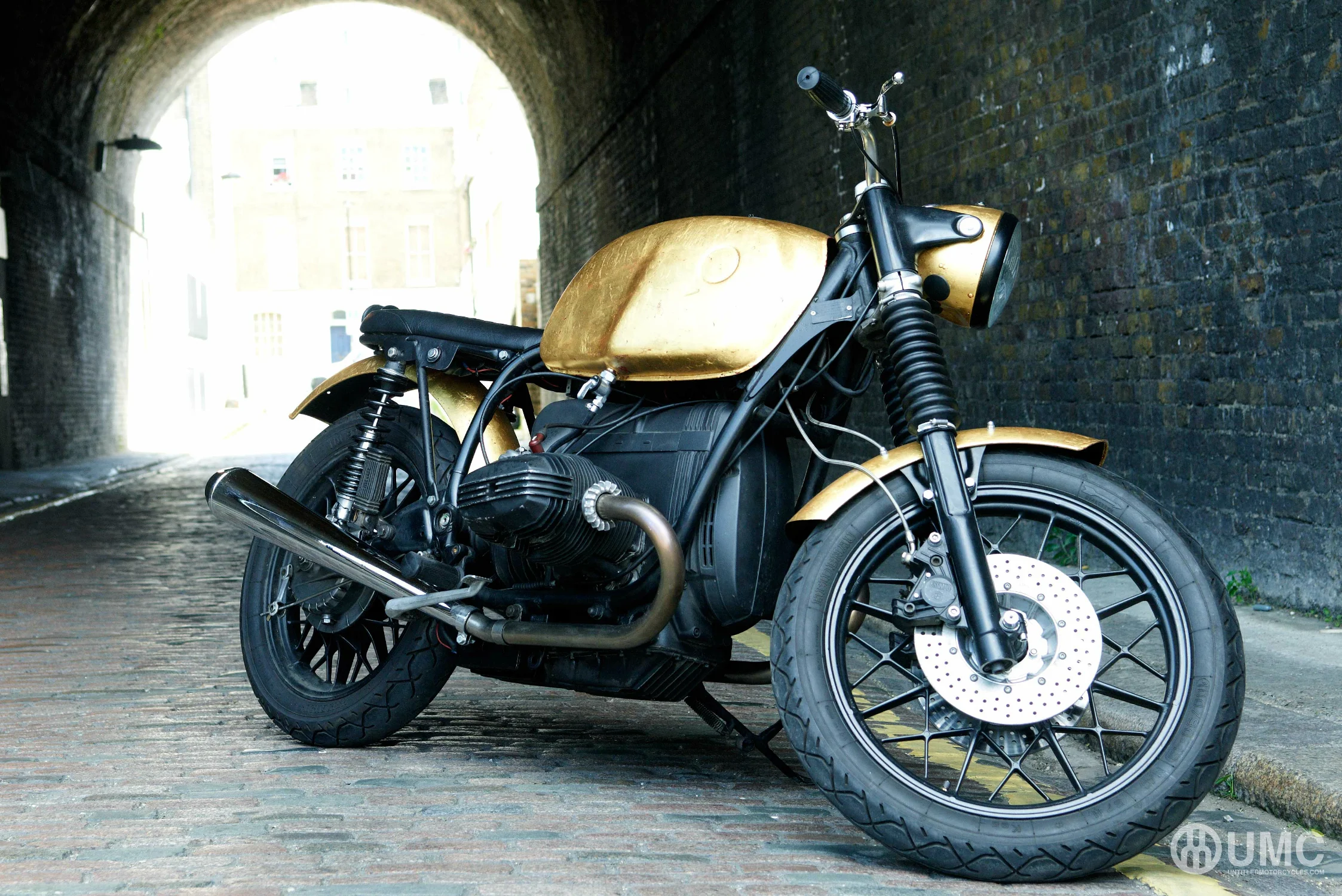

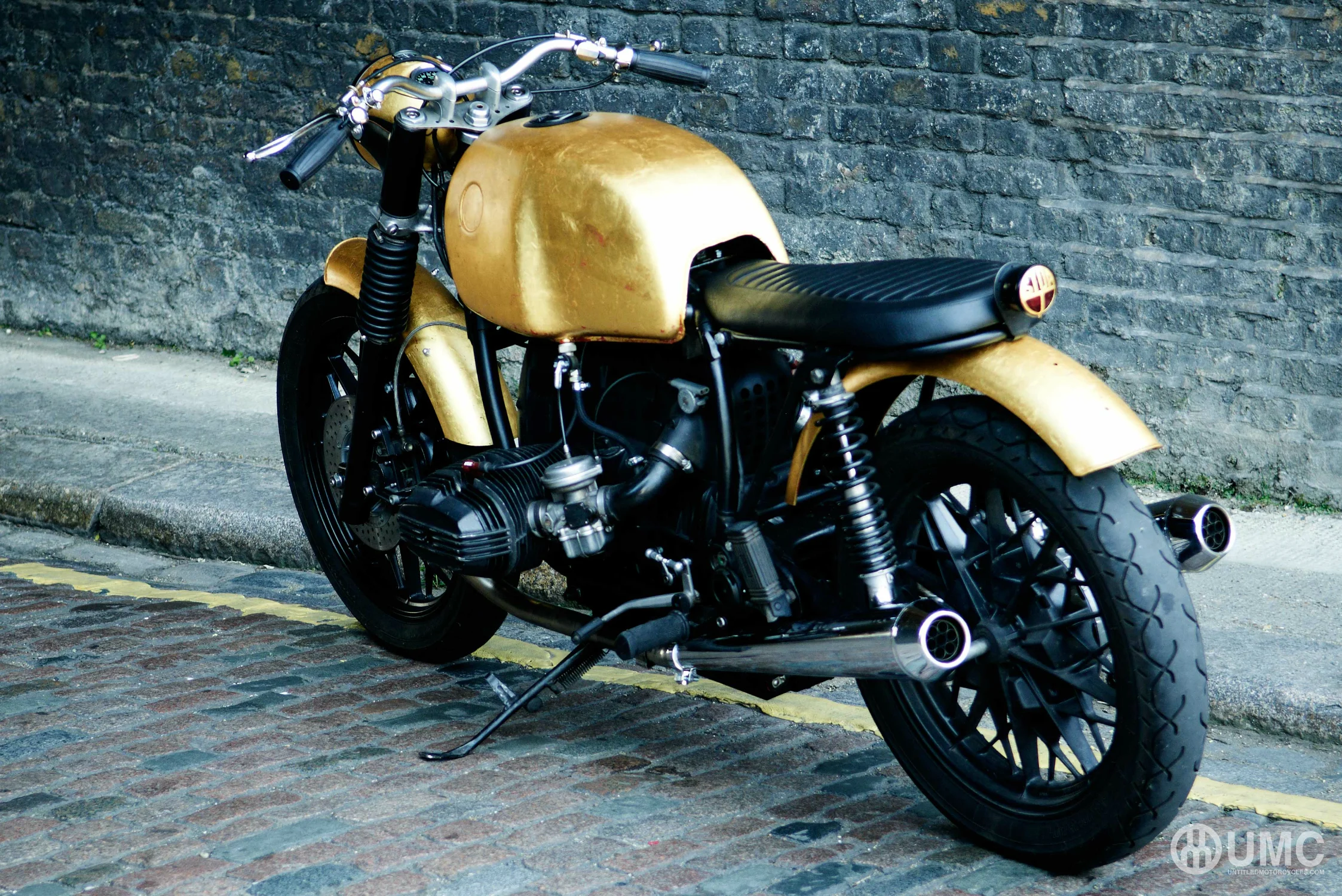

UMC-015 NUGGET
Donor bike
BMW R80/7
SPECIFICATIONS
Length: 1465 mm
Width: 746 mm
Height: 1080 mm
Seat: 810 mm
Weight: 215 Kg
Fuel: 24 litres
Frame, Suspension, Wheels.
• Original frame de-tabbed and powder coated satin black
• Subframe shortened and rear hoop angled up. Powder coated satin black
• Original snow flake wheels powder coated satin black.
• Updated brakes to twin disc brembo’s
• New tyres
• New rear Hagon shocks customised
Electrics, Lighting.
• New UMC wiring loom
• Front headlight modified by UMC
• Original BMW speedo sunk into modified UMC headlight

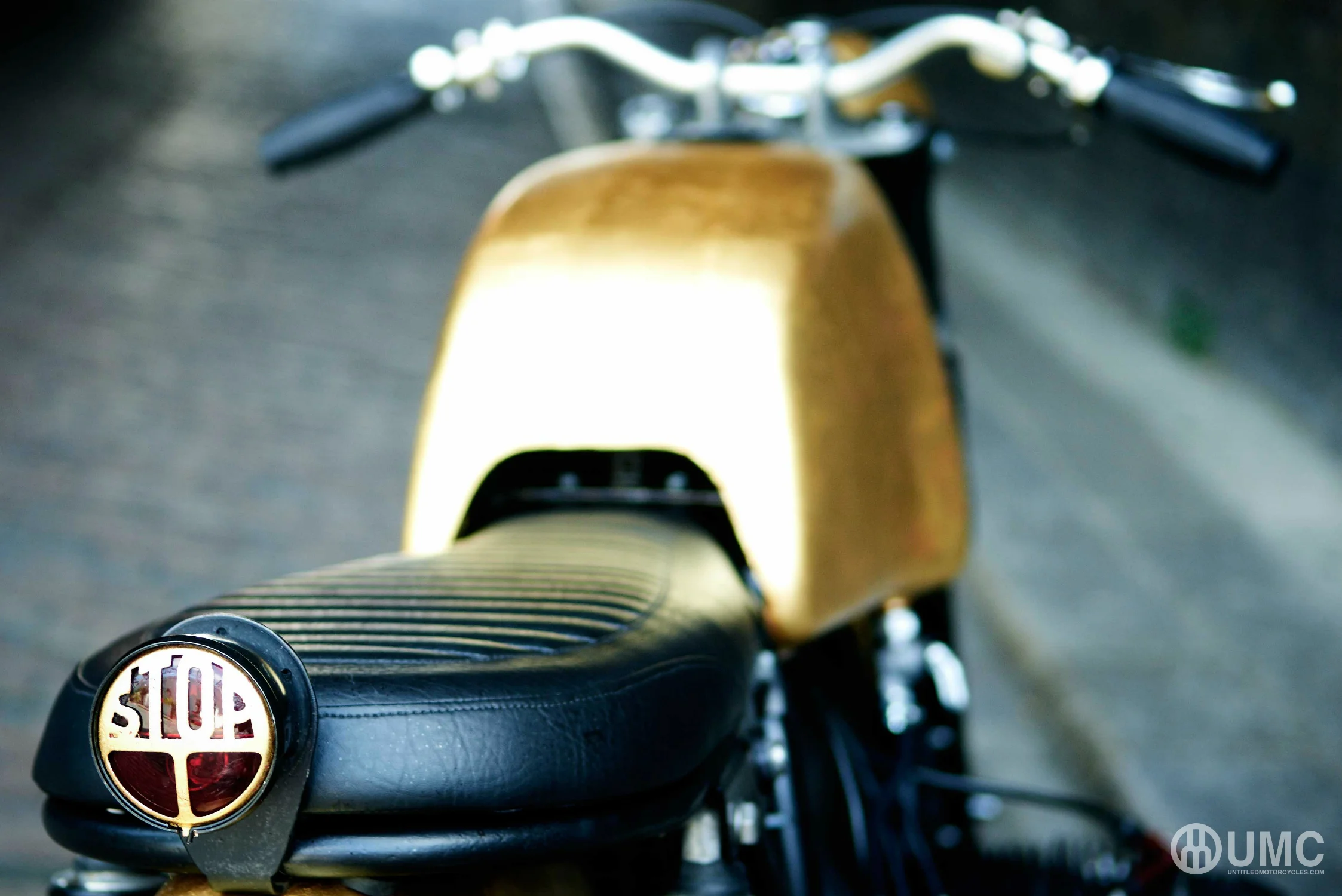

• Rear light, Vincent stop light mounted on UMC fabricated bracket
• Under gearbox Odyssey battery mounted in house fabricated box.
• Original ignition switch relocated to left side of subframe.
• Starter button replaced by after market flat button style mounted below ignition switch on subframe.
Controls.
• Classic British scrambler handle bars finished by UMC
• Classic British handle bar controls with wiring through bars and top yoke into headlight shell.
• Classic British brake and clutch levers and mounts.
• Original master cylinder and reservoir replaced by BMW under tank master cylinder.
• Cable operated brake lever
• Goodrich brake hose
Engine, Exhaust.
• Engine overhauled and painted black
• New big end shells
• New timing chains and tensioners
• New piston rings
• New valve get guides
• New valves
• Stainless pushrods tubes
• New clutch friction plates
• All new gaskets
• Gearbox overhauled
• Carbs overhauled
• Header pipe balance pipe removed.
• Classic British silencers fitted
Bodywork.
• Original tank under coated in red, gold leafing applied to tank. Clear lacquer finished
• New leather seat
• New stainless front and rear mudguards. Under coated in red, gold leafing applied to tank. Clear lacquer
